SINGLE PHASE MOTOR AND SUBMERSIBLE STARTER

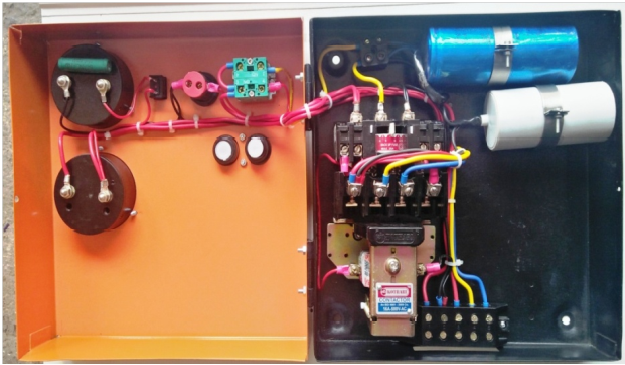

TECHSUPPEN make SPLINE series DOL motor starter specially designed For single phase submersible motor. Rating 0.5 to 3 HP & heavy duty four pole power contactor with Thermal Over Load relay for motor Protection.
- HEAVY DUTY FOUR POLE CONTACTOR.
- THERMAL OVER LOAD RELAY FOR MOTOR PROTECTION.
- THERMAL OVER LOAD RELAY FOR MOTOR PROTECTION.
- HEAVY DUTY STARTING & RUNING CAPACITOR FOR HIGH STARTING TORQUE.
- MECHANICAL INTERLOCK FACILITY FOR STOP PUSH BUTTON.
- FIELD REPLACEABLE FIXED & MOVING CONTACT.
- MANUAL RESET FACILITY.
- AMMETER & VOLTMETER.
- MOTOR ON INDICATION.
- SMART DEED DRAWN POWDER COADED BOX WITH IP 54 ENLOSURES.
ADVANTAGES:-
- Long Life.
- Superior Performance.
- Easy Maintenance.
SINGLE PHASE SUBMERSIBLE STARTER DETAILS
| HP RATING AT 220V AC | RELAY RATING | CONTACTOR RATING | RUNING CAPACITOR | STARTING CAPACITOR |
|---|---|---|---|---|
| 0.50 HP | 4 - 6.5 A | 16 A | 36 MFD | 80-100 MFD |
| 0.75 HP | 4 - 6.5 A | 16 A | 36 MFD | 80-100 MFD |
| 1 HP | 6 - 10 A | 16 A | 36 MFD | 120-150 MFD |
| 1.50 HP | 10 - 13.5 A | 16 A | 50 MFD | 120-150 MFD |
| 2 HP | 13 - 18.5 A | 25 A | 36+36 MFD | 150 -200 MFD |
| 3 HP | 18 - 25.5 A | 30 A | 50+50 MFD | 200-250 MFD |
